AP serial number Locations

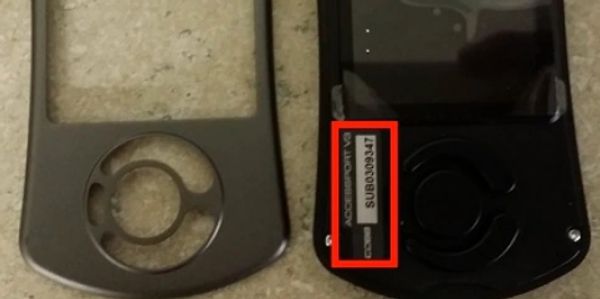

Location 1: Front of the AP

The serial number is on the front of the AP itself down in the bottom left corner. This sticker is not on some older AP’s and is not visible if you have a faceplate on the AP.

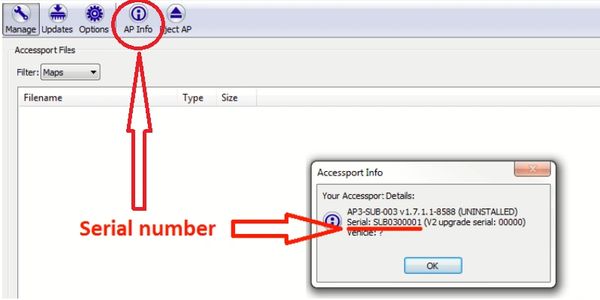

Location 2: AP Manager

Connect the AP to your computer, open AP Manager, then click the "AP Info" button at the top of the program.

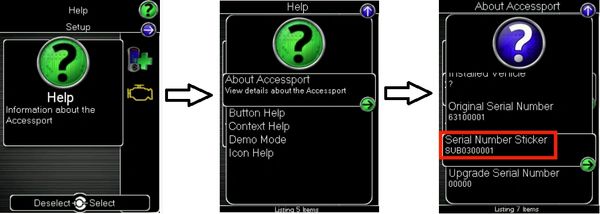

Location 3: AP Help Menu

Serial number can be found on the AP screen when its powered by the car or your computer.

Select "Help" then "About Accessport"

How To use your Access port

How To Datalog

With the Accessport installed navigate to the "gauges" menu.
If it's the first time you've gone to the gauge menu of the Accessport it will prompt you to ask how many monitors you want to display. The selection can be updated later in the Gauge Setup menu.
From the main gauge display you can simply hit the center button on the Accessport in order to start logging. If you haven't pre-selected anything there are default parameters that will be logged which are typically the ones COBB Customer Support will ask you for. Note that the Accessport will show "logging" at the top of the screen and at the bottom will let you know the logging rate.
In order to stop logging you'll hit the center button on the Accessport again.

How To Setup Gauges

How To Change Number Of Parameters Displayed

Link your Accessport to your vehicle and turn it on.
Select "Gauges" from the main menu
Go up and select "Settings"
Select "Configure Datalogging"
Select/de-select parameters you want logged
When finished simply hit the back button to return to the gauges

Datalogging

A Datalog is a file taken by the Accessport where it records a user-specified set of sensor data and/or information which the vehicle's computer is using to run the engine. This can include things from simple data like coolant temperature or boost, to how often the computer wants the fuel injector to be open during a given engine cycle.

How To Transfer Files

Install Accessport Manager

Visit our website and download Accessport Manager
https://www.cobbtuning.com/products/software/accessport-manager

Connecting to Accessport Manager:

Plug your Accessport into your computer.
Open up Accessport Manager
Click Connect (if Auto Connect isn't turned on)

Adding files to the Accessport:

On the Right hand side of Accessport Manager select Import File to Accessport
Choose the file you wish to put onto your Accessport
Click "Open" and your file will be moved over onto your Accessport
Once the transfer is finished click "Disconnect" and you're ready to go install your new map on the car!

Taking files off the Accessport:

On the main screen select the file you want to take off (you may need to filter the results to find the correct item)
If you want to select more than one file you may need to hold the CTRL button (CMD on MAC) on your keyboard when selecting items.
After selecting everything you wish to put on your computer click
Input a destination folder for your items.
Click ok, and you're done!
